Colibri iMX8 QuadXPlus 2GB Wi-Fi / Bluetooth (IT)
1 of 1

Colibri iMX8 QuadXPlus 2GB Wi-Fi / Bluetooth (IT)

Buy here

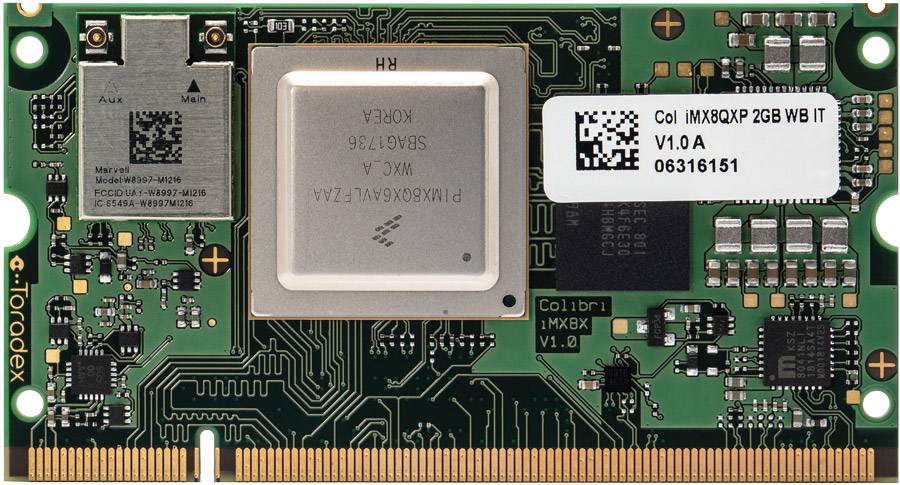

The Colibri iMX8 QuadXPlus is a small form-factor System on Module based on the latest NXP i.MX 8 QuadXPlus SoC.  It has 4 latest 64bit Armv8 Cortex-A35 cores which runs up to 1.2GHz, it features a Cortex-M4F processor which peaks up to 266MHz, this SoC features HiFi 4 DSP for audio processing. The module comes with 2GB LPDDR4 RAM and 8GB eMMC flash along with On-board dual-band 802.11ac 2x2 MU-MIMO Wi-Fi and Bluetooth 5 with pre-certified for FCC (US), CE (Europa), and IC (Canada). It comes with IT grade temperature range of -40° to +85° C.

  • NXP® i.MX 8QuadXPlus
  • 4x Arm Cortex™-A35 1x Arm Cortex™-M4F
  • 1.2GHz (A35) 266MHz (M4) 640 MHz (DSP)
  • HiFi4 DSP
  • 2GB LPDDR4 (32 Bit)
  • 8GB eMMC
  • -40° to +85° C



toradex
