Apalis iMX8 QuadMax 4GB Wi-Fi / Bluetooth

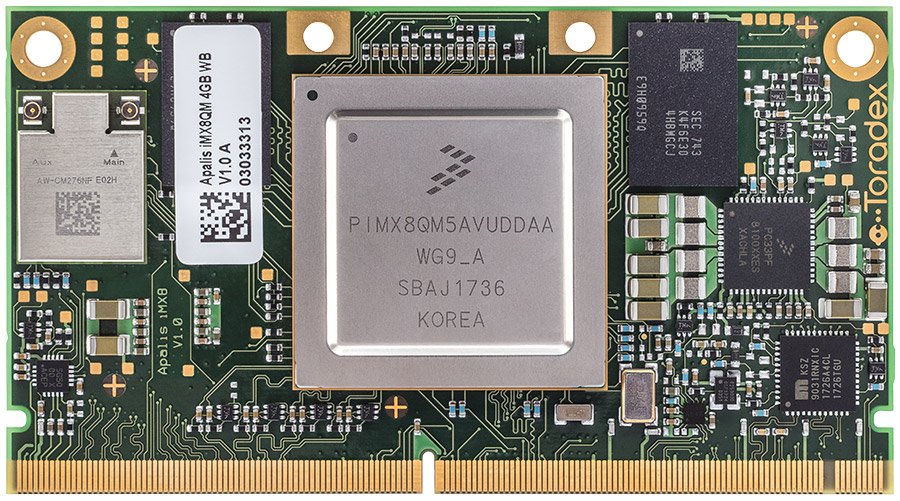

The Apalis iMX8 QuadMax System on Module is based on the NXP® i.MX 8QM SoC. It has 2x Arm Cortex™-A72 cores running at 1.6GHz, 4x Arm Cortex™-A53 cores running @ 1.26GHz, it features dual Arm Cortex™-M4F core which peaks at 266MHz with heterogeneous multi-core architecture, this SoC features HiFi 4 DSP for voice processing applications. The module comes with 4GB LPDDR4 RAM and 16GB eMMC flash along with On-board dual-band 802.11ac 2x2 MU-MIMO Wi-Fi and Bluetooth 5. It comes with IT grade temperature range of -40° to +85° C. Ideal for signal processing, computer vision and HMI applications.

• NXP® i.MX 8QuadMax
• 2x Arm Cortex™-A72 4x Arm Cortex™-A53 2x Arm Cortex™-M4F
• 1.6GHz (A72) 1.26GHz (A53) 266MHz (M4) 640 MHz (DSP)
• HiFi4 DSP
• 4GB LPDDR4 (64 Bit)
• 16GB eMMC (8 Bit)
• Dual Vivante GC7000 XSVX
• -40° to +85° C
