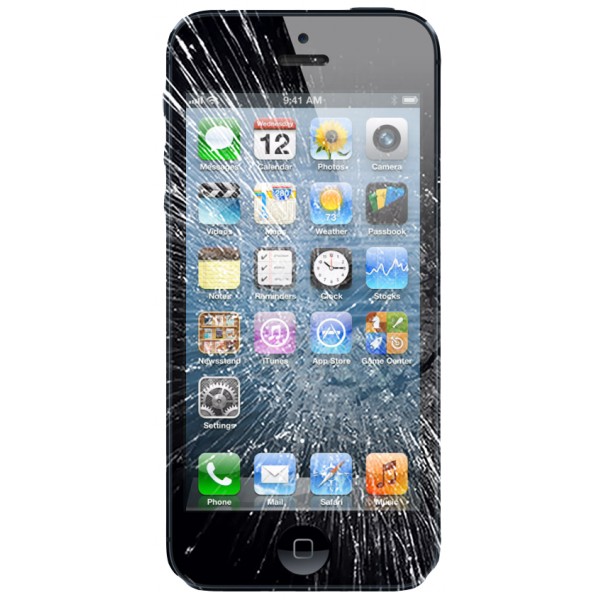

A few steps show you how to replace a cracked screen on your iPhone 5s
If the screen on your iPhone 5S is cracked and it's not under warranty, you can either live with it, get a new phone, take it to a shop, or as I'll show you, fix it yourself. If you are technical enthusiasts or an expert in the smart phones, you can do it by yourself according to following steps. Just feel free to ask yourself some questions.
Should I do this myself? Before undertaking this DIY project, I suggest you read this article on what to know before trying to fix a smartphone or tablet and then decide if you should repair the phone yourself or have someone else do it. Also, if you have an AppleCare+ or other warranty that covers accidental damage, just get your phone fixed or replaced under the warranty. But if you're ready to tackle a challenging but satisfying do-it-yourself fix and perhaps save a little money, here's a guide for replacing a cracked display.
Then, get the replacement parts and tools. Before beginning the repair, you'll need to get the necessary replacement parts and tools. If you pick up those trustworthy retailers, you will enjoy the free set of professional kit for repairing and installation. The iPhone's front panel and LCD are fused together, so I recommend buying both as a single unit--most parts providers only sell them this way. Not all replacement screens are made to the same tolerances as the original part. Our website offer Grade O iPhone 5S LCD display touch screen digitizer replacement parts. This product is tested by the rigorous QC in order to receive the best quality phone screens.
The Home button is another story. Very few, if any, replacement screens come with the 5S's fingerprint-scanning Home button. Before installing the new screen, you'll need to transfer the button from your old screen to the new one. But we'll get to that in a minute. In this guide, I'll be replacing the panel on an AT&T iPhone 5S, but you can use same basic steps on phones from other carriers and, with the exception of the steps relating to the Home button, on the iPhone 5 and 5C. Lastly, know that by following these instructions, you do so at your own risk. And remember to back up the data on your phone before starting the repair.
Step 1. Eject the SIM card
With all the prep work finished, we'll start the repair by ejecting the SIM card.
Step 2. Remove the broken display
Next, remove the two screws located along the bottom edge and gently lift up on the front panel using the suction cup and a prying tool if necessary. Take care not to pull the panel too far. Before completely removing the panel, we'll need to disconnect several cables, starting with the one for the Home button, which is covered by a small metal bracket.
To disconnect the other cables, we'll need to remove a metal shield on the upper portion of the motherboard. Finally, we can detach the panel's three remaining cables and completely remove it.
Step 3. Transfer the Home button
Before we can install our new panel, we need to transfer the Touch ID enabled Home button from the old panel to the new one. So first, remove the single screw that secures the button's cable. Note the position of the small contact under this screw. It will need to be in the same position on the new panel. Next, very gently fold the cable down so we can access the metal bracket underneath. Now, remove the two screws attached to the bracket and the bracket itself. Finally, comes the most delicate part of the process. Very carefully pry the Home button cable away from the panel, followed by the Home button. You may need to apply a little heat to soften the adhesive as you remove these components. You may also need to push up on the button from the front of the panel. Just be gently and go slowly. With the Home button removed, we can place it on our new panel, reattach the bracket, and reposition the cable?
Step 4. Install the new display
We're now ready to install the new display. So, reconnect the cables at the top of the panel and replace the metal shield. Then reconnect the Home button and reposition its metal bracket. Lastly, press the new panel onto the frame, secure it with the two pent lobe screws, and power up the phone to make sure both everything is in working order.
This whole process for iPhone 5s screen replacement isn’t difficult for technical expert or fans. But you need to pay more attention on the details about the screen. This handy tips will help you to change the screen for your smart gadgets. Wish these simple steps or guides give you the timely service.
