CNC PUNCHING MACHINE

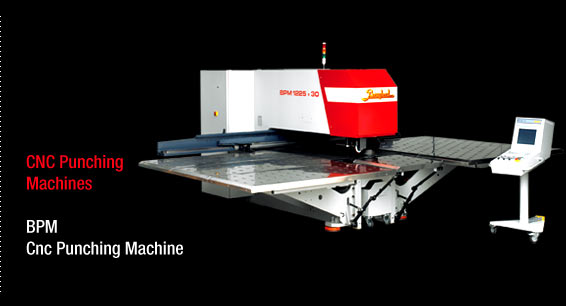

CNC PUNCHING MACHINE CAPACITY RANGE BPM 1225x30 with indexable multi tool
MAIN FEATURES:
| • • • • • • |
C type frame, strength-tested and analysed in finiteelement analysis(FEA). Welded frame and components are normalized by heat treatment. Hydraulic punching head with indexable multi tool system that gives 360’ rotation possibility in increments of 0.01’ , which eliminates setting time and tooling costs. High capacity AC servo drive motors on all axes providing increased travel speeds. Communication between CNC and axis motors is maintained through fiber optic sercos bus line resulting 16Mb data transfer rate and 1 ms cycle time. Possibility to use forming tools |
||
| PRINCIPAL EQUIPMENT: | |||
| • • • • • • • • • • • |
One D size indexable multi tool (3 or 8 stations) High capacity CNC unit with 12’’ touchscreen Offline programming software including automatic nesting Portable operator panel Quick tool change Two hydraulic sheet clamps with automatic force adjustment Table with ball transfers and brush Coolant for hydraulics Waste box Warning lamps Light barriers |
||
