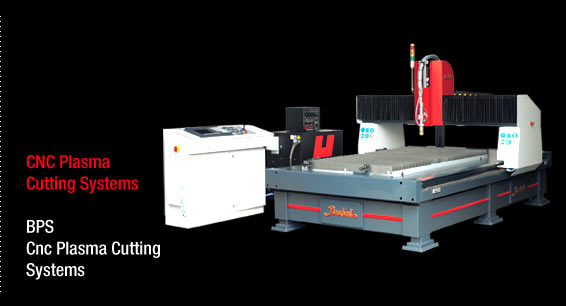

CNC Plasma Cutting System
CNC Plasma Cutting System
| MODEL DESIGNATION : BPS | ||
|
|
CAPACITY RANGE STANDARD TABLE SIZES (X-Y in mm) 1500x3000 2000x4000 2000x6000 2500x4000 2500x6000 3000x6000 3000x12000 |
|
|
TECHNICAL DATA |
||
| • • • • • • • • • • • • • • • |
High precision plasma cutting technology. High mechanical accuracy to (+,- ) 0.1 mm. Axis positioning speed 30 mt/min. X and Y axis travel on precision linear rail guides. Torch-height travel with ballscrews on dual linear guides. Fast and accurate positioning with AC brushless servo motors. Cutting table independently constructed of bridge and machine frame yo maintain positional accuracy under any table-load. Patented crash protection on torch. Automatic torch height control. Sectional cutting table with automatic fume extraction system. Windows(R) based CNC unit. Automatic nesting software. Remote control option on large tables. Optional dust and fume collector devices conforming to safety regulations. Additional plasma or oxygen torch option. |
|
