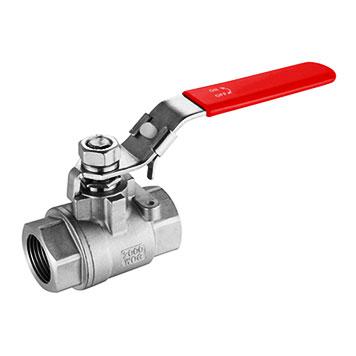

2000 PSI Two-Piece PTFE/RPTFE/PPL Seat Cast Floating Ball Valve

Buy here



China Two-Piece PTFE/RPTFE/PPL Seat Floating Ball Valve Manufacturer Shinjo Supplies Two-Piece PTFE/RPTFE/PPL Seat Floating Ball Valve, 2000 PSI, Cast.

Features:

Blow-out Proof Stem.

Pressure Balance Hole in Ball Slot.

Various Thread Standards Available.

Lock device.



Standards:

Design: ASME B16.34.

Wall Thickness: ASME B16.34.

Pipe Thread: ASME B1.20.1.BS21.

DIN 2999/259, ISO 228/1.

JIS B 0203, IS0 7/1.

Inspection & Testing: MSS SP-110, EN 12266.



2000 PSI Two-Piece PTFE/RPTFE/PPL Seat Cast Floating Ball Valve Drawing





Parts Name & Material

1.Body: CF8M, CF8, WCB.

2.Body Gasket: PTFE.

3.Cap: CF8M, CF8, WCB.

4.Seat: PTFE, RPTFE, PPL.

5.Ball: CF8M: CF8.

6.Stem: SUS316: SUS304.

7.Thrust Washer: PTFE.

8.Stem Packing: PTFE: RPTFE.

9.Packing gland: SUS304.

10.Sprinq Washer: SUS304.

11.Stem Nut: A193-B8.

12.Lockinq Device: SUS301.

13.Handle: SUS304.

14.Handle Cover: Plastic.
