H Beam Shot Blasting Machines for Surface Cleaning

H Beam Shot Blasting Machine Factory JX Provides H Beam Shot Blasting Machines for Surface Cleaning and Strengthening, to Improve the Quality of Surface.

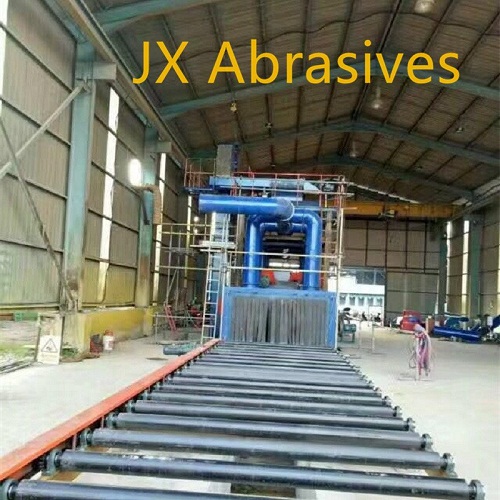

JX H beam shot blasting machine are automatically table roller continually passing type. This type of machine is especially used for steel H beam surface cleaning and strengthening, to get a certain degree of surface roughness, to add paint adhesion force, to improve surface quality and to enhance anti-corrosive effects. There is a shot blaster on each side of the shot blasting room. They are assembled in the best position according to the H beam condition.

Technical Parameters:
1. Blasting  chamber
  Blast Chamber Open Size: 2500mm—1200mm

2. Roller conveying system
  1) Working speed m/min : 0.5-4
  2) Power : kw 4x2

3. Blasting nozzles
  1) Model:     Q034H
  2) Shot blasting volume : kg/min 250—10
  3) Power:            kw  15—10
  4) Quantity:              Set 10

4. Portrait & horizontal screw conveyor
  1) Portrait Delivery capacity:  t/h 150
  2) Power:  kw 7.5
  3) Horizontal delivery capacity: t/h 150
  4) Power: kw 5.5

5. Bucket elevator
  1) Lifting capacity:  t/h 150
  2) Power: kw 11

6.Separator
  1) Separating capacity: t/h  150
  2) Air speed in separating area: m/s  4~5
  3) Power:   kw   5.5

7. Dust collector system
    Pulse cartridge dust collector
   Quantity:  set 2

8. Reverse Blower
1) Air volume: m3/h 9000 X 2
2) Power:  kw 18.5+ 11

9. Lifting system for cleaning Brush
 1) Lifting distance:  mm 0~1200
 2) power: kw 2.2 x2
 3) Cleaning Brush
 4) Diameter of brush: mm 600
 5) power: kw 3

Total power: kw 263
Total air volume:  m3/h 38000

This machine is not a standard machine, any parameters can be customized according clients' requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
