Rigid-Flex PCB PCB Fabrication Service

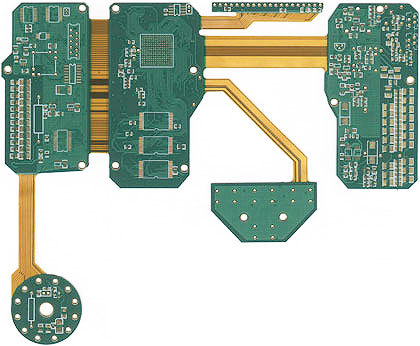

Rigid-Flex PCB are printed circuit boards highlighted by both rigid and flexible areas that make them ideally suited for a wide range of applications. The typical rigid-flex PCB circuit includes two or more conductive layers that comprise either flexible or rigid insulation material between each one - the outer layers may have either exposed pads or covers. Conductors are found on the rigid layers, while plated through-holes are found in both the rigid and flexible layers.
The Advantages of Rigid-Flex PCB Technology
While this type of flexible circuit may be more expensive to design and produce, it does offer a number of important advantages. For instance, the reduced size makes it easier to fit more components into a smaller space. This can actually help to lower overall system costs. Additionally, because they require the need for fewer interconnects and related parts and components, these flexible circuit board can also prove to be more reliable and require less maintenance in the long run.
As with all types of flexible circuit boards, the Rigid-Flex PCB will perform well in even the harshest environments, especially those featuring extreme heat. A rigid flex board is also easy to test, making it well-suited for prototyping.
Rigid-Flex PCB Solutions of the Highest Quality
Currently, JHYPCB has served companies in industries such as medical, telecommunications and manufacturing with our superior quality Rigid-Flex PCB manufacturing services. We have an in-house quality control department to ensure your boards fabricated and assembled properly - we also guarantee the quality of all parts and components. Our engineers will even perform a Design for Manufacture (DFM) check at no additional charge.
How to Get Rigid-Flex PCB Fabrication Price?
Send us your Rigid-flex PCB design file (Gerber format preferred | Preorder Checklist) & requirements using our Advanced PCB order system, we'll quote for PCB cost at top speed and guide you to place the order. Reach us at anytime if you need more information regarding rigid-flex PCBs produciton.
Additional information
Rigid Flex Printed Circuit Boards
