EPAN-Load Centers

GENERAL

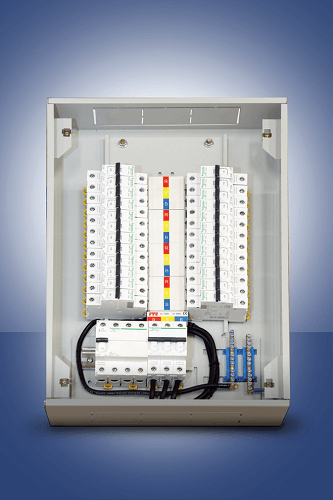

EPAN (EP) load centers are designed for reliable distribution and control of electrical power as the service entry point in residential, commercial and light industrial premises. EPAN (EP) load center is available in Pan assembly design for indoor application, with main MCB & MCCB up to 250A.
null

FEATURES

  • Quick installation.
  • Easy maintenance.
  • Colored phase indication.
  • Modern design, hidden screws and hinges.
  • Robust mechanical structure
null

TECHNICAL SPECIFICATIONS

  • Standards: IEC 61439-1 (-2), ASTA
  • Rated current: 125A/250A
  • Maximum operating voltage: 690V
  • Incoming: MCB/MCCB
  • Outgoing: MCB
  • Busbar type: ETP tin plated copper
  • Protection: IP30
  • Enclosure material: Cold rolled sheet
  • steel (up to 1mm)
  • Colour: RAL 7035 – light grey
