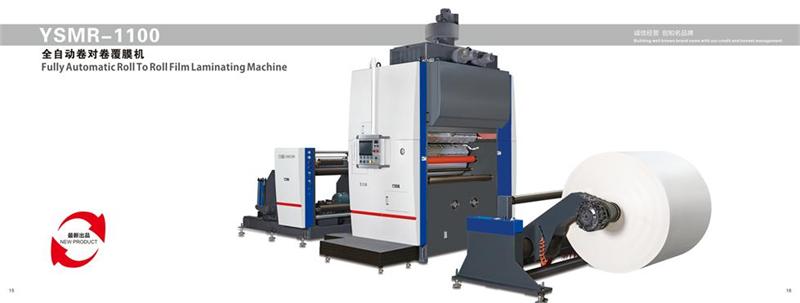

Fully Automatic High Speed Roll to Roll Film Laminator

Fully Automatic High Speed Roll to Roll Film Laminator:

Specifications:

1.Max Rolling Width Size:  1100(W)mm

2..Min Rolling Width  Size:  300(W)mm

3.Rolling Diameter: 1200mm

4.Speed：10-120m/min

5.Production power:approx 30-40KW

6.Weight: Approx 9.0T

7.Machine size: 8(L)*2.93(W)*3.5(H)m

8.Service Voltage: 380V/50HZ

9.Paper Thickness: 60-500g/m²



10.Air Pressure: 6 bar

---

Machine Construction:

1. Automatic rolling part

2. Guiding system- rolling aligning

3.Ceramic Anilox Roller-coating

   system

4. Hot air circulation drying system

5. Electromagnetic heating system

6. Automatic winding part-Air

    cylinder Extrusion winding
