Smoke Exhaust Fans.

Buy here
Smoke Exhaust Fans.
GT series.

GT fans have been tested for.

250°C for 2 hours– model GT (250) series.
300°C for 1 hours– model GT (300) series.
400°C for 2 hours– model GT (400) series.

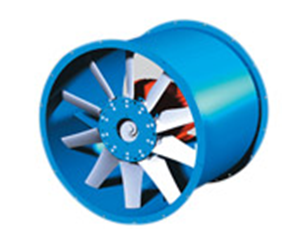

The GT(GAV/GAX performances + T temperature) axial fans have
been specially designed for handling and extract fumes and smokes from the buildings in
case of fire.
The GT fans with variable pitch angle of the blades, are suitable for applications where large quantities of air have to be moved against moderate system pressure.
The range of diameters from 315 mm to 1600 mm, enable to meet any requirement for
capacities from 3000 to 150.000 m3/h with total pressure of 1000 Pa.


BI series.
BI fans have been tested for 400°C for 2 hour.
The Axial Bifurcated fans is and have been specially designed for extraction of hot fumes and smoke in case of fire. Also suitable.
for hot application for continues operation at 200°C. BI fans are of variable pitch angle blades,
and is equipped with standard motor.

The special arrangement of the motor which is totally isolated from
the air on smoke stream.

enable The range of diameters from
315 to 1000 mm, enable to meet any requirement for capacities
from 1000 to 55.000 m3/h with total pressure of 500 Pa.


AXV series.
AXV fans have been tested for: 400°C for 2 hours.
The Axial fans is and have been specially designed for extraction of hot fumes and smoke in case of fire. Also suitable for hot application for continues operation at 200°C.
The range of diameters from 315 to 1000 mm, enable to meet any requirement for capacities
from 1000 to 55.000 m3/h with total pressure of 500 Pa.


LB series .

LB series has been tested and approved in France by C.T.I.C.M for continuous
operation at 400°C for 2 hours.
The LB belt driven Centrifugal fans are specially designed for continues operation with hot fluid.
The maximum temperature of the fluid in continuous operation is 300°C.
The series comprise 9 sizes in single inlet version, with backward inclined plate blades impellers and diameters from 250 mm to 1000 mm.
Capacities up to 50,000 m3 /hr and total pressure up to 2,000 Pa.


CHB series .

CHB series has been tested and approved in France by C.T.I.C.M for continuous
operation at 400°C for 2 hours.
The CHB belt driven Centrifugal fans are specially designed for industrial application at high efficiency.
The CHB series class II with cooling wheel have been tested and approved in France by the C.T.I.C.M laboratories for continues operation at. 400°C for 2 hours
The series comprise 19 sizes in single inlet version, with backward inclined plate blades impellers and diameters from 417 mm to2448 mm.
Capacities up to 470,000 m3 /hr and total pressure up to 5200 Pa.


DB/DK.
400°C for 2 hours.


GAV/GAX.
400°C for 2 hours.
