Hoist

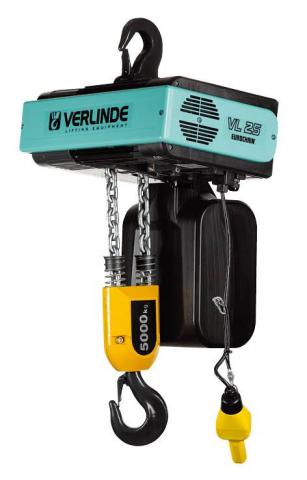

1- Electric Chain Hoist: Standard electric chain hoists from 60kg to 10,000kg with a complete range of hook suspension units with manual and electric travel trolleys.

Duty Class determination for chain hoists: Three fundamental criteria must be taken into account to determinate duty class for electric chain hoists: Number of starts per hour Duty factor Daily operating time Type of duty:

Light duty: F.E.M. Group 1Bm 150 starts per hour 25% Duty factor or Production duty: F.E.M. Group 2m 240 starts per hour 40% Duty factor We require the following information to be able to quote you for the correct electric chain hoist for your application: Load capacity Height of lift Hoisting speeds Power supply Beam width (if trolley is required) FEM / ISO Duty Group (see above) Suspension: hook, push, chain / electric trolley< Operating environment i.e. outdoors Any other special requirements

2- The Verlinde Eurobloc electric wire rope hoists from 800kg to 80,000kg with a complete range of manual and electric trolleys. Eurobloc electric wire rope hoists from Hoist UK come in a variety of configurations including normal headroom, low headroom and double girder trolley designs. The Eurobloc VT range of electric wire rope hoists offer a long lasting safe, economic and an easily maintained unit, with unique features such as near vertical true lift and sealed dust proof brakes.

3-A range of manual trolleys and manual chain hoists with load capacities of 250kg to 20,000kgs. Hoist UK offer a premium range of chain hoists, as well as an economy range.

4-A range of manual winches from a load capacity of 150kg to 5000kgs through ranges from leading winch manufacturers Verlinde and Gebuwin.

5-Standard electric winches from 125kg to 10,000kg capacity with drum capacities up to 200m.

6-VERLINDE have designed a range of explosion and spark proof hoists, with a close awareness of their customer’s requirements, for use in many different fields such as the food industry, chemical, petrol and gas industries, and any environment where safety in production is evident. This new range of lifting unit is manufactured according to the new ATEX 100a (94/09/CE applicable in 2003) and CE regulations (CE marking, Documentation, CE certificate approval). Following requirement of ATEX 100a directive equipment is classified into 5 categories according the level of explosion risk in working area.
