Cranes Type
1- A range of standard crane components and complete crane systems from 250kg to 80,000kg SWL range Cranes and Crane kits are available in single, double or under slung configuration with a choice of electric chain hoist, electric wire rope hoist or electric belt hoist. Crane kits are supplied with hoisting unit, end carriages (with connection plates), cable festoon system, with control panel and pendant complete with mounting brackets. All cranes and crane kits are manufactured to the highest standards and are fully compliant with the latest UK and European standards.
2-Hoist UK are able to supply a complete range of manual overhead and under slung cranes and kit to suit your particular application.
Overhead cranes & kits:
- Lifting capacity: 250kg to 10,000kg SWL
- Span: from 5m to 18m
Under slung cranes & kits:
- Lifting capacity: 250kg to 6,300kg SWL
- Span: from 2m to 16m
3- A range of standard light crane system components in steel and aluminum for loads from 125kg to 2,000kg. Eurosystem from Verlinde gives a practical solution for your handling needs in large facilities and the components are compact offering an efficient use of space. Eurosystem offers a completely modular system allowing you to create simple or complex systems with direction changes through switches and turntables. Reduced headroom units are available for increased working height with a variety of suspensions and fixings making it suitable for all types of buildings and structures. Eurosystem ALU offers a completely modular system for single and double girder beams, with fixed and articulating bridges, providing a true lightweight crane system.
4-A range of articulating arms and over braced / under braced jib cranes from 60kg to 10,000kg with spans up to 8 meters. Our range of Jib Cranes are available for indoor and outdoor use and are suitable for use with a manual or electric hoists with the option for manual and powered trolley. In addition to standard jib cranes which are available with over braced or cantilever beams we offer a range of articulated arm jib cranes for use with standard manual or electric hoists from our range.

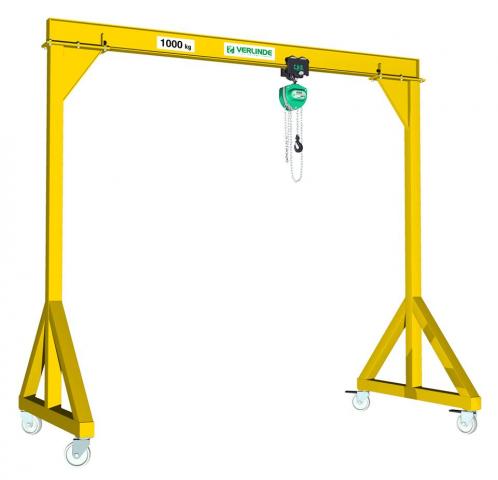

5-A standard range of steel and aluminum mobile gantry cranes from 500kg to 5,000kg capacity. The Verline range of steel gantries are suitable for indoor and outdoor use and come with either a standard I beam or Eurosystem profile beam. The portable gantry with I beam is suitable for movement under load when moved on a clean and level floor. A full range of options are available including: Lockable wheels Non swiveling wheels Mains isolator and power feed Electric travel Special paint finishes Galvanized finish.
