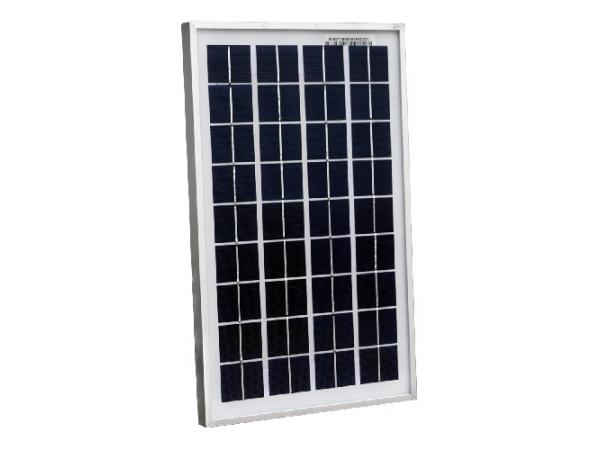

ECO-WORTHY10W 12V Polycrystalline Solar Panel

Buy here

Package Included

1pcs 10W 12V Polycrystalline Solar Panel

Order above 2pcs, we will ship from  USA, EU, Australia stock, Usually Ships in 3 to 5 Business Days

ECO-WORTHY 10W Polycrystalline Solar Panel

ECO-WORTHY 's solar panel compose of multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.

  • Widely used on small dry camp and off-grid ligthing applications

  • Easy Installation with pre-drilled hole.

  • Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).

  • Resistance to Salt Corrosion and Humidity

  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)

  • Warranty: 5-year material and workmanship warranty

 100w poly solar panel
specifcation
Related power 10W
Voc 20.6V
Vop 17.3V
Short circuit current (Isc) 0.69A
Working current (Iop) 0.58A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc - (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃to +80℃
Frame Heavy duty aluminum
Kind of connection waterproof junction box, can be customized
Guarantee of power 90% within 10 years  80 within 25 years
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 337 ×204 x 18(13.3*8.06*0.72)
Net Weight 0.85kgs (1.88lbs)
Quality assurance testing
1. Thermal cycling test
2. Thermal shock test
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test
5. Hail impact test
6. Mechanical, wind and twist loading test
7. Salt mist test
8. Light and water-exposure test
9. Moist carbon dioxide/sulphur dioxide
