Package Included
1pcs 40W semi-flexible mono solar panel with 1.4m cables( 1.5mm2 16AWG solar cables)
Germany, China stock Usually Ships in 3 to 5 Business Days

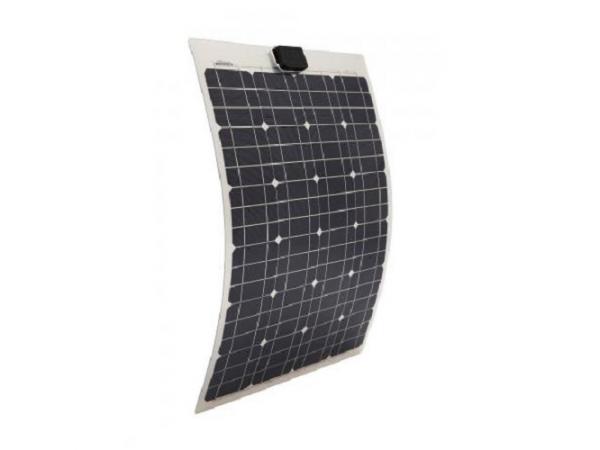

ECO-WORTHY 40W Semi-Flexible Monocrystalline Solar Panel
|
ECO-WORTHY semi-flexible solar panel got an impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts. The panel can be affixed by adhesive stick or glue mounting ease of installation. The thin, lightweight module can also be affixed to or sewn into canvas, including bimini tops.
Semi-flexible solar panels provides greater power efficiency than a traditional model. Flexibility for the solar panel mounted on an RV, boat, cabin, tent, or any other irregular surface.
|
|
-
Ideal for RV boat or tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models.
-
Suitable for marine use: the laminate coating on the exterior of the panel makes it impervious to saltwater splashing, rain, and other weather elements.
-
Completely waterproof Junction box. sealed and waterproof junction box and makes it waterproof.
-
Light weight 82 % lighter than alununium glass solar modules
-
Durable surface is less than 1/8" / 2.5mm thick
-
Quick Connectors: 1.4 meters of flex fitted with S-S connectors for quick and easy set up
-
1-year material warranty
|

|
|
| Specification |
| Rated Power |
40W |
| Vm(V) |
18V |
| Im(A) |
2.32A |
| Voc(V) |
22V |
| Isc(A) |
2.76A |
| Module Size (MM) |
597*540*2.5 (23.6*21.3*1/8" ) |
| Number of cell |
36 |
| Cell Dimension (mm) |
125 |
| Maximum system voltage (V) |
1000 |
| Temperature coefficients of Isc (%) |
+0.1%/℃ |
| Temperature coefficients of Voc (%) |
-0.38%/℃ |
| Temperature coefficients of Pm (%) |
-0.47%/℃ |
| Temperature coefficients of Im (%) |
+0.1%/℃ |
| Temperature coefficients of Vm (%) |
-0.38%/℃ |
| Temperature Range |
-40℃ ---85℃ |
| Junction Box Type |
PPO, black |
| Length of Cables (mm) |
750 |
| Cell Efficiency (%) |
≥18.0% |
| Output tolerance (%) |
± 3% |
| Backsheet |
Aluminum substrate |
| Encapsulation |
PET |
| Standard Test Conditions |
AM1.5 100MW/c㎡ 25℃ |
| Net Weight |
1.5kgs(3.3lbs) |
