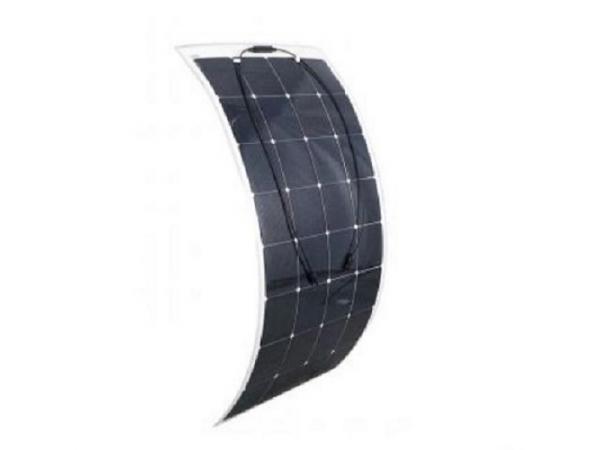

ECO-WORTHY 160W FLEXIBLE SOLAR PANEL BATTERY CHARGE 18V 90CM CABLE MC4 CONNECTOR FOR RV
Package Included:
1pcs 160W flexible mono solar panel.
USA/ UK/AU/Asia Usually Ships in 5 to 7 Business Days
ECO-WORTHY 160W FLEXIBLE SOLAR PANEL BATTERY CHARGE 18V 90CM CABLE MC4 CONNECTOR FOR RV
The Eco-Worthy series of flexible solar panel is one important part of main products. It's high conversion efficiencies, easy installation and hand. It's widely used in any large or small on-gird/off-grid solar power stations, building roof-top, boat, RV.
1. Powerful: Max power up to 160W.1kw daily output.
2. High efficient mono-crystalline silicon cells with 22.5% efficiency.
3. Advanced technology back contact cells.
4. Reverse discharging function.
5. Water-proof IP67 rated，the junction box is sealed and waterproof
6. The plastic back sheet can be curved to a maximum 30-degree arc. Sustainable power sources for your car batteries, car, RV, boat, ship, aircraft, satellites, space stations.
7. Outstanding electrical performance under high temperature and low irradiance conditions.
.jpg)
| Specification | |
| Model | ECOL02AM160-1 |
| Related power | 160W |
| Max. power Current(Imp) | 9.06A |
| Short circuit current(Isc) | 9.60A |
| Max. power voltage (Vmp) | 17.7V |
| Open circuit voltage(Voc) | 20.68V |
| Solar Cell Efficiency | ≥16.8% |
| Maximum System Voltage | DC300V |
| Output Tolerance | ±3% |
| Test Condition | AM=1.5，E=1000W/㎡ ，Tc=25°C |
| Dimensions (L x W x H)mm | 1335*670*2mm |
| NET Weight (KG ) | 2.3kg |
