Package Included
1 pc 100W Mono Folding Solar Panel
1 pc 15A PWM Solar Regulator (Inside the Panel)
1 pair 3m Solar Cable (Inside the Panel)
1 pair Battery Clips (Inside the Panel)
USA, EU, AU, CA, China stock, Only needs 3-7workings to arrive.

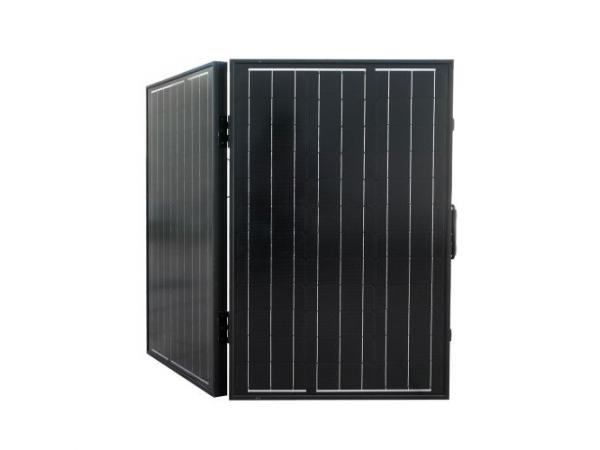

ECO-WORTHY 100W 12V Foldable Mono Solar Panel
|
ECO-WORTHY 's solar panel compose of mono solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.
|
|
-
Ideal for hiking, camping, and military use, off-grid solar panel system, caravan, RV, boat, Green house solar panel system, solar pump watering system etc.
-
Easy Operation: open up the folding solar panel,face the sun, battery clips allows for simle connection to the battery.
-
Pre-installed controller and Pre-wired for 12V battery charging, you don't have to add extra controller.
-
With handle, convinient to carry
-
Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
-
Resistance to Salt Corrosion and Humidity
|
.jpg)
|
|
-
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
-
25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 2-year material and workmanship warranty
|
|
| Specifcation |
| Related power |
100W |
| Open circuit voltage (Voc) |
21.6V |
| Max power voltage (Vpm) |
18V |
| Short circuit current (Isc) |
6.1A |
| Max power current (Ipm) |
5.54A |
| Output Tolerance |
±3% |
| Solar cell materials |
Monocrystalline |
| Temperature range |
-40℃to +80℃ |
| Frame and leg |
Heavy duty aluminum |
| SLA Battery Voltage |
12V |
| Folding Size |
790x510x70mm(31"x20"x2.8") |
| Weight |
11.98kgs |
