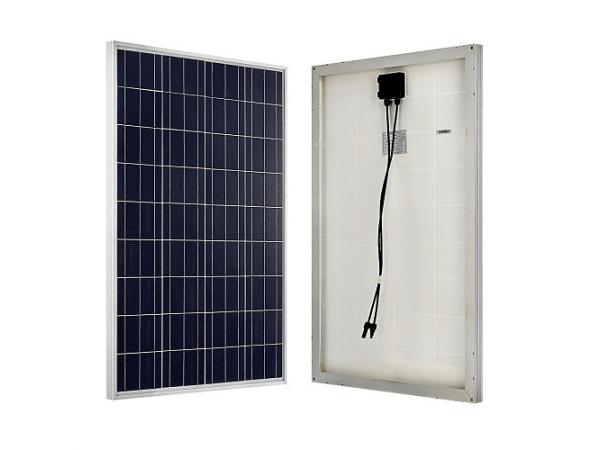

ECO-WORTHY 100W 12V Polycrystalline Solar Panel

ECO-WORTHY 100W 12V Polycrystalline Solar Panel

ECO-WORTHY 's solar panel compose of multi-crystal solar cell with an efficiency of over 17%. All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation. This translates to both more wattage per square foot and lower mounting structure cost.

Ideal Daily Output: 500W (depending on the availability of sunlight)
Basic component for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors
By-Pass Diode minimized the impact of shade.
Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
Resistance to Salt Corrosion and Humidity
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)

100w poly solar panel

Specification
Rated power	100w
Voc	22.41
Vop	17.9V
Short circuit current (Isc)	6.2A
Working current (Iop)	5.59A
Output Tolerance	±3%
Temperate coefficient of Isc	(010+/- 0.01 )%/ ℃
Temperate coefficient of Voc	- (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc	-0.47%/℃
Temperature range	-40℃to +80℃
Frame	Heavy duty aluminum
Kind of glass and its thickness	Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage	12V
Dimensions (L x W x H)mm	100066535mm

Weight	19.85lbs (9kg)
Warranty	25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
