ECO-WORTHY 100 Watt Monocrystalline Solar Panel 12V Off-Grid RV Boat Kit:100 Watt Solar Panel with 20A LCD Display Charge Controller Charging Camping Boat Caravan RV

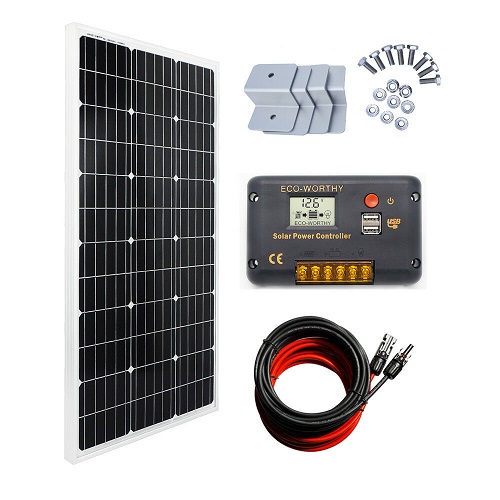

Package Included
1pcs 100W Monocrystalline Solar Panel
1pc 20A CMG Solar Charge Controller (12V/24V autodetect)
1set Z Style Mounting Kit
5meters 12AWG (4mm²) extension solar cable with MC4 quick connector ( one red and one black)
USA, EU, Australia, Usually Ships in 3 to 5 Working Days
ECO-WORTHY 100W PWM Off-Grid RV Kit
.jpg)
This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system. Even on cloudy days, the solar panel delivers a high energy yield. The panel is covered by a special tempered glass to protect against environmental conditions such as hail, snow and ice. The panel frame made of anodized aluminum ensures the stability.
1. Easy installation with pre-drilled hole.
2. By-Pass diode minimized the impact of shade.
3. Waterproof IP-65 rated junction box: advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets)
4. Resistance to salt corrosion and humidity.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).
6. Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
| Specification | |
| Rated power | 100W |
| Voc | 21.6V |
| Vop | 18V |
| Short circuit current (Isc) | 6.11A |
| Working current (Iop) | 5.55A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃ to +80℃ |
| Frame | Heavy duty aluminum |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 1010mm*510mm*35 mm(39.8*20.1*1.4 In) |
| Weight | 8.6kg |
| Warranty | 25-year transferable power output warranty: 5-year/95% efficiency rate; 10-year/90% efficiency rate; 25-year/80% efficiency rate; 5-year material and workmanship warranty |
