Loading Docks

A lowered height of only 6” allows ground level access without the need for construction of a pit. With vertical travel of 54”, a Pentalift low profile dock lift can accommodate truck/trailer heights from pick-ups to semi-trailers. Since it requires no pit and has the capability to be semi-portable, a low profile dock lift is an effective solution for ground level doors, confined spaces and leased building applications. Sizes and capacities are available to suit a wide range of applications. Available in 4,000, 5,000, 6,000, 8,000lb capacities.

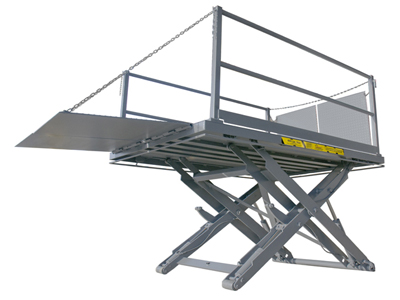

The low profile dock lift is a surface mounted, stationary or semi-portable unit offering several deck sizes with different capacities. The design of the LPE unit ensures maximized stability and full use of the deck area for product transfer. Cylinder placement is completely beneath the deck eliminating above deck obstructions common to other designs with vertical or mast type cylinder arrangements. Full use of the deck area adds the capability to load/unload in all four directions for greater efficiency and reduced product damage.
Pit construction is not required for the low profile model. This saves installation costs and makes relocation easier than it is for pit mounted dock lifts.

HED Series Dock Lifts

Pit installed units allow ground level access for all ranges of material handling equipment without the need for ramps. Vertical travel of 59" accomodates virtually all truck/trailer bed heights. Breaking down pallets of product can be eliminated, thereby dramatically increasing efficiency and safety. The potential of product damage is also reduced. Pit mounted dock lifts are available in sizes and capacities to suit the most demanding applications.

HC Series Hydraulic Dock Leveler

The HC series hydraulic dock leveler is designed and built to provide superior product value and prolonged, trouble-free performance. Convenient push button activation and proven hydraulic technology increase the efficiency and safety of the loading/unloading process.
